DAC series bearings

Tel:: +86 13562039168

WhatsApp:: +86 13562039168

Collect

Type table
Details

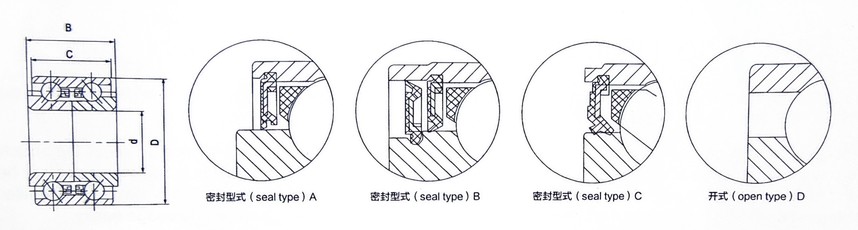

Bearing No.	Other Brand Model		Dimensions(mm)				Weight (kg)
NSAR	KOYO	FAG	d	D	B	C	Weight (kg)
DAC408402538			40	84.025	38	38	0.97
DAC40840034			40	84	34	34	0.94
DAC40840038			40	84	38	38	0.96
DAC401080032/17			40	108	32	17	1.04
DAC42720038	DU4272C	521771533953	42	72	38	38	0.56
DAC42720038/35			42	72	38	35	0.52
DAC42750037	DAC4275BW2RS DAC4275	53395354595D521771			37		0.59
DAC42760033		555801	42	76	33	33	0.65
DAC42760037/35			42	76	37	35	0.56
DAC42760038/35			42	76	38	35	0.62
DAC42780038	DAC4278A2RS		42	78	38	38	0.70
DAC 42780040			42	78	40	40	0.66
DAC42800036/34	DAC4080MA		42	80	36	34	0.81
DAC42800037			42	80	37	37	0.70
DAC42800342		527243c582226	42	80.03	42	42	0.82
DAC42800045	DAC4280w-2		42	80	45	45	0.86
DAC42820036	DAC4282	561481588226	42	82	36	36	0.77
DAC42820037		565636	42	82	37	37	0.79
DAC42840036		564727	42	84	36	36	0.84
DAC42840037			42	84	37	37	0.9
DAC42840039		543359B	42	84	39	39	0.93
DAC43760043			43	76	43	43	0.71
DAC43770042/38			43	77	42	38	0.64
DAC43790045			43	79	45	45	0.84
DAC43800038		579943B	43	80	38	38	0.75
DAC43800050/45	DAC4380ACS69	567519A800941C	43	80	50	45	0.96
DAC43820045	DAC4382W-3 DAC4382W-3CF79		43	82	45	45	0.96
DAC43/45820037			43/45	82	37	37	0.76
DAC44825037			44	82.5	37	37	0.73
DAC45800045		564725AB	45	80	45	45	0.80
DAC45800045/ 44			45	80	45	44	0.95
DAC45830045			45	83	45	45	0.60
DAC45840039	DAC458439BW	547103E43BW03	45	84	39	39	0.85
DAC45840041/39	DAC4584DW		45	84	41	39	0.85
DAC45840042/40			45	84	42	40	0.90
DAC45840042			45	84	42	42	0.90
DAC45840045			45	84	45	45	0.98
DAC458500302	DAC2004		45	85	30.2	30.2	0.63
DAC45850041		580191	45	85	41	41	0.89
DAC45850051			45	85	51	51	1.00
DAC45880045			45	88	45	45	1.15
DAC47810053			45	81	53	53	0.95
DAC48820037/33			48	82	37	33	082
DAC49840048	BTHB329129	DU4984-7	49	84	48	48	0.89
DAC49880046		572506E	49	88	46	46	1.05
DAC50900034		528514	50	90	34	34	0.83
DAC50900040			50	90	40	40	0.98

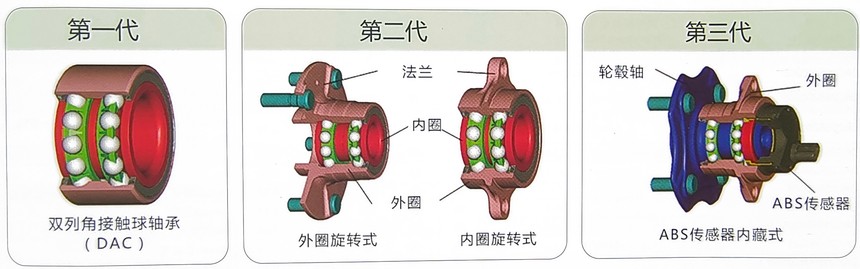

The main role of wheel bearing is to bear the load and provide accurate guidance for the rotation of the hub. It bears both axial load and radial load. It is a very important component. The traditional automobile wheel bearing is composed of two sets of tapered roller bearing or ball bearing. The installation, oiling, sealing and clearance adjustment of the bearing are all carried out on the automobile production line.

This structure makes it difficult to assemble in the automobile production plant, high cost, poor reliability, and the car in the maintenance point maintenance, but also need to clean, oiling and adjustment of bearings. Wheel hub bearing unit is in the standard angular contact ball bearings and tapered roller bearings, on the basis of it will be two sets of bearing as a whole, has the assembly clearance adjustment performance is good, can be omitted, light weight, compact structure, large load capacity, for the sealed bearing prior to loading, ellipsis external wheel grease seal and from maintenance etc, and has been widely used in cars, in a truck also has a tendency to gradually expand the application.
